Steelnovo
A fusion of tradition and technology.
Handcrafted steel meets 3D precision. Entirely developed in Italy, the Steelnovo is launched as a limited edition of 70 pieces, equipped with Columbus tubing and Campagnolo components – Colnago's historic partners – and boasts an elegant, refined and modern design that guarantees high levels of performance, offering cyclists the unmistakable riding pleasure typical of the brand.
Details
Series
Steel bikes
Model
Steelnovo
Weigth
Weigth
Size 485 unpainted frame: 1.895g
Weight limit
This model has an overall maximum limit (combined weight of bicycle, rider and load) of 110 kg
Frame kit
Frame (material)
Steel tubes and lugs with 3D-printed steel lugs
Fork (material, section notes)
Carbon fork for disc brakes, integrated cables, 1"1/8 section
Headset
1"1/8 - 1"1-4 (conic)
Seatpost
Carbon seatpost, round section 27.2mm
Through axles
Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
Drivetrain
Shifting system
Campagnolo Super Record WRL (Wireless) DB 12
Front derailleur
Campagnolo Super Record WRL - FD23-SR12WRL
Rear derailleur
Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL
Chain
Super Record WRL 12S
Chainrings
48-32T
Cassette
10-29T
Bottom bracket
T47 Campagnolo - 68 mm
Crank length
Option 1 (Standard for sizes 420 - 485)
170 mm
Option 2 (Standard for sizes 510 - 530)
172.5 mm
Option 3 (Standard for sizes 550 - 570)
175 mm
Brakes
Brakes
Campagnolo Super Record WRL - Standard Flat Mount
Disc size
160 mm Front/ 140 mm Rear
Brake lever
Campagnolo Ergopower DB Super Record WRL 12V
Special Edition Campagnolo x Colnago 70th Anniversary
Brake caliper
Campagnolo Standard Flat Mount - Brake pads: DB310
Wheels
Wheels
Custom Bora Ultra WTO 45 Disc Brake - Campagnolo x Colnago 70th Anniversary
Material
H.U.L.C. carbon fiber UD with high resistance properties - C-Lux finishing
Rim height
45 mm
Internal channel width
21 mm
Hubs
Carbon Hubs
CULT™ ceramic bearings
Integrated flanges
Through axles
Custom Carbon-Ti Through Axles
Front: HH12-100 - Rear: HH12-142
Tyres
Pirelli PZero Race TLR 700x28
Maximum tyre size
35 mm + 4mm clearance
Components
Saddle
Brooks Cambium C13
Handlebar
Colnago CC.01 integrated Cockpit - regular geometry.
Stem
CC.01 integrated cockpit
Handlebar Tape
Colnago Grip Black
Bottle cage
Not included
Other accessories
Cockpit integrated multitool.
Sloping Geometry
Reach
370 mm
Stack
512 mm
Fork
372 mm
Hs
106 mm
Ss
70.8°
Sc
75.50°
C
410 mm
A
573 mm
BB drop
74 mm
Default Components
Default crank length
170 mm
Default stem length
90 mm
Default handlebars width
390 mm
)
CC.01 Regular
Stem Length
80 mm

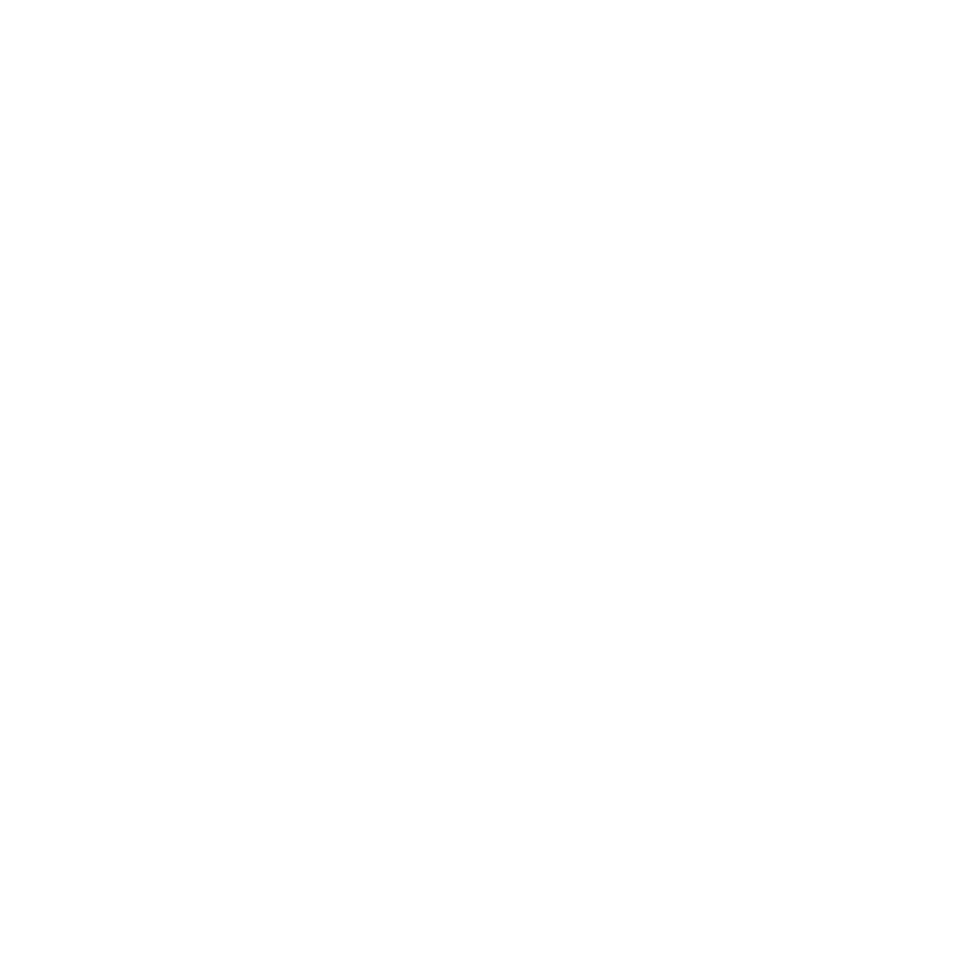

Hood width
370 mm
Drop width (flare)
398 mm
Reach
75 mm
Drop
119 mm
Angle
82°
)
)
)
Numbered limited edition
The bikes are a limited edition of 70 numbered examples in honour of the company's 70th anniversary.
01
Numbered limited edition
01
The bikes are a limited edition of 70 numbered examples in honour of the company's 70th anniversary.
)
Hidden welds
The essential shapes of the tubes integrate into each other without visible welds, thanks to precise welding work.
02
Hidden welds
02
The essential shapes of the tubes integrate into each other without visible welds, thanks to precise welding work.
)
Full integration
The cables on this bike are fully integrated, giving the bike a modern look on a par with top-of-the-range carbon bikes.
03
Full integration
03
The cables on this bike are fully integrated, giving the bike a modern look on a par with top-of-the-range carbon bikes.
)
3D printed lugs
The Steelnovo features innovative 3D printed lugs, which allow a perfect fit in the frame with an accuracy of less than a hundredth of a millimetre
04
3D printed lugs
04
The Steelnovo features innovative 3D printed lugs, which allow a perfect fit in the frame with an accuracy of less than a hundredth of a millimetre
)
Columbus tubings
The tubes are made by Columbus, Colnago's historic partner, with whom the brand's most iconic and prestigious steel models have been built, from the Colnago Super to the Master.
05
Columbus tubings
05
The tubes are made by Columbus, Colnago's historic partner, with whom the brand's most iconic and prestigious steel models have been built, from the Colnago Super to the Master.
)
Campagnolo Custom Groupset and Wheels
Campagnolo produces a 70-piece custom version of the Super Record Wireless groupset specifically for this model.
06
Campagnolo Custom Groupset and Wheels
06
Campagnolo produces a 70-piece custom version of the Super Record Wireless groupset specifically for this model.
)
STEELNOVO
This edition is for those seeking not just a bicycle but a piece of Colnago’s history to take on the road, where past and future converge with every pedal stroke.
Details
 "Embossed front logo Colnago")
Embossed front logo
Details
 "Personalized thru-axles Colnago")
Personalized thru-axles
Details
 "Campagnolo pantograph gear lever Colnago")
Campagnolo pantograph gear lever
Details
 "Personalized Campagnolo Bora Ultra WTO Colnago")
Personalized Campagnolo Bora Ultra WTO
Details
 "Personalized Campagnolo SR Wireless rear derailleur Colnago")
Personalized Campagnolo SR Wireless rear derailleur
Details
 "Dedicated chainring Colnago")
Dedicated chainring
Details
 "Special Columbus etiquette Colnago")
Special Columbus etiquette
Colnago 70th anniversary
Handcrafted steel meets 3D precision in a frame that celebrates 70 years of Colnago excellence.
 "Colnago")
 "Colnago")
 "undefined Colnago")
Blockchain Technology
Register your Colnago Steelnovo on the Colnago Blockchain. You will enjoy all the legal benefits of having the ownership of your bicycle registered on a secure system accessible to the authorities.
In addition, you will be able to prove the authenticity of the frame at any time, resell your Colnago more easily on the secondary market, certify any maintenance carried out, and report a theft making it unsaleable on the secondary market.
Finally, you get an extension of the warranty for an additional year over the statutory two-year warranty already provided with the bike.
